FT-Slottechnik SCD2022 Carrera 15.5V Digital Decoder Chip

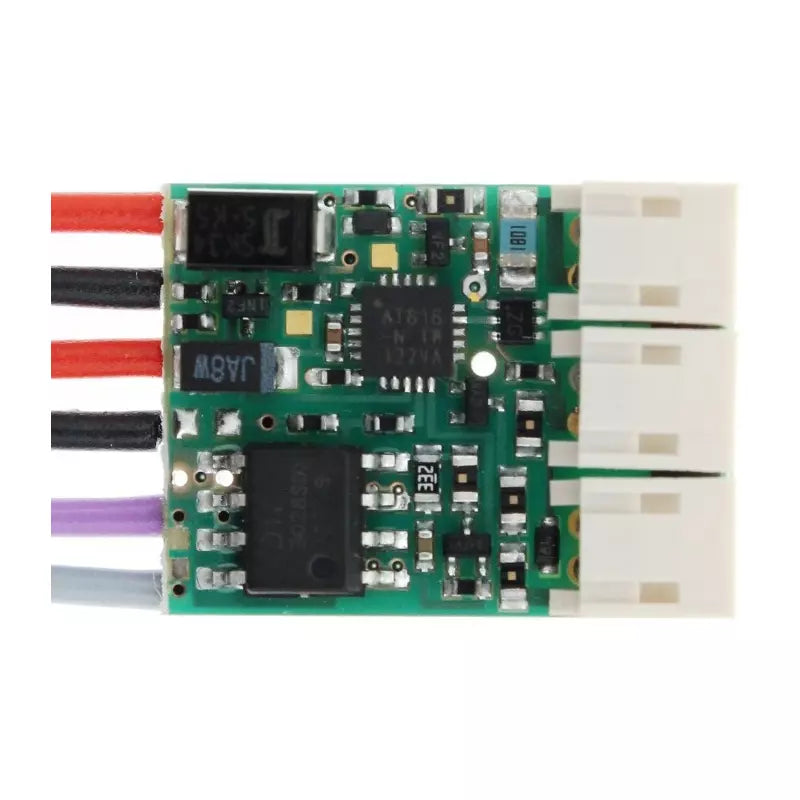

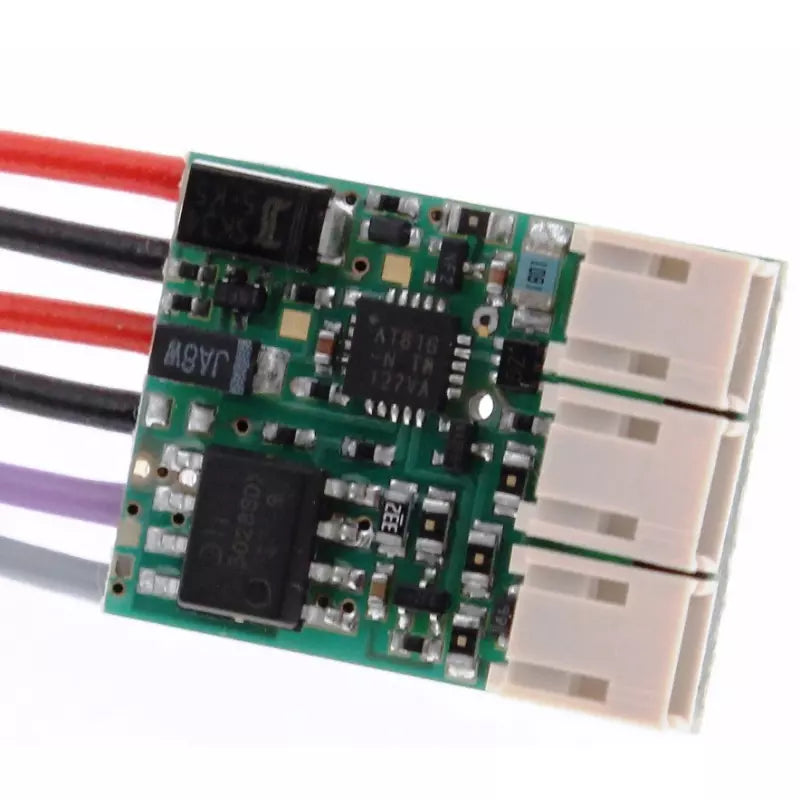

FT-Slottechnik SCD2022 Carrera 15.5V Digital Decoder Chip - Ultra low profile.

Converts any brand 1/32 slot car to Carrera Digital 132, including NSR, Scalextric, Slot.it, Policar, Ninco, ScaleAuto, SCX, Fly, etc.

Fully compatible with Carrera Digital 132.  Ultra low profile ideal for those slot cars with bulky interior or low bodies.  Extra long wires, color coded to Carrera brand standards.

Package includes:

• Assembled, ready to use decoder chip with extra long 4" feed and motor wires.
• Plug wth wires for light assemblies, loose: three (3)
• Pre wired IR-Diode sensor
• Special Custom IR-Diode sensor mounting bracket
• Instructions

Technical Specifications

• Minimum operating voltage: 12.0 volts DC
• Maximum operating voltage: 15.5 volts DC
• Dimensions (L x W x H): 18.8 x 14.2 x 6.5 mm (4.5 without connector)
• Weight: 2 grams
• Angled plus
• Longer connection cable
• Underside without components

Special functions

• Front light, rear light with brake light and auxiliary brake light
• Ghostcar function
• No accidental transcoding while driving
• Stronger braking effect

Installation instructions
The decoder has to be fixed, e.g. by mirror adhesive tape (not included), into the chassis at the appropriate place. For mounting the IR diode a hole with a diameter of 3.0 mm has to be drilled in range of the front third and seen from above 12.5 mm left of the centerline of the chassis. The enclosed support for the IR diode has to be glued into the chassis in the region of the drilled hole and the IR diode hast to be mounted therein (hot glue recommended).
The decoder has separate connections for rear light and brake light. To use the built-­in rear-­ / brake light function on the rear light connection the soldering points (red framed on Figure 1) on the bottom of the decoder must be connected.
